Photon Mono 4 Ultra Enhanced Starter Bundle

$489.00 CAD
$802.00 CAD $489.00 CAD
-$313.00 CAD
Shipping calculated at checkout.

⚡ Anycubic Fantastic Weeks – Limited-Time Sale
Bundle & Save – Save $313 Compared to Buying Separately.

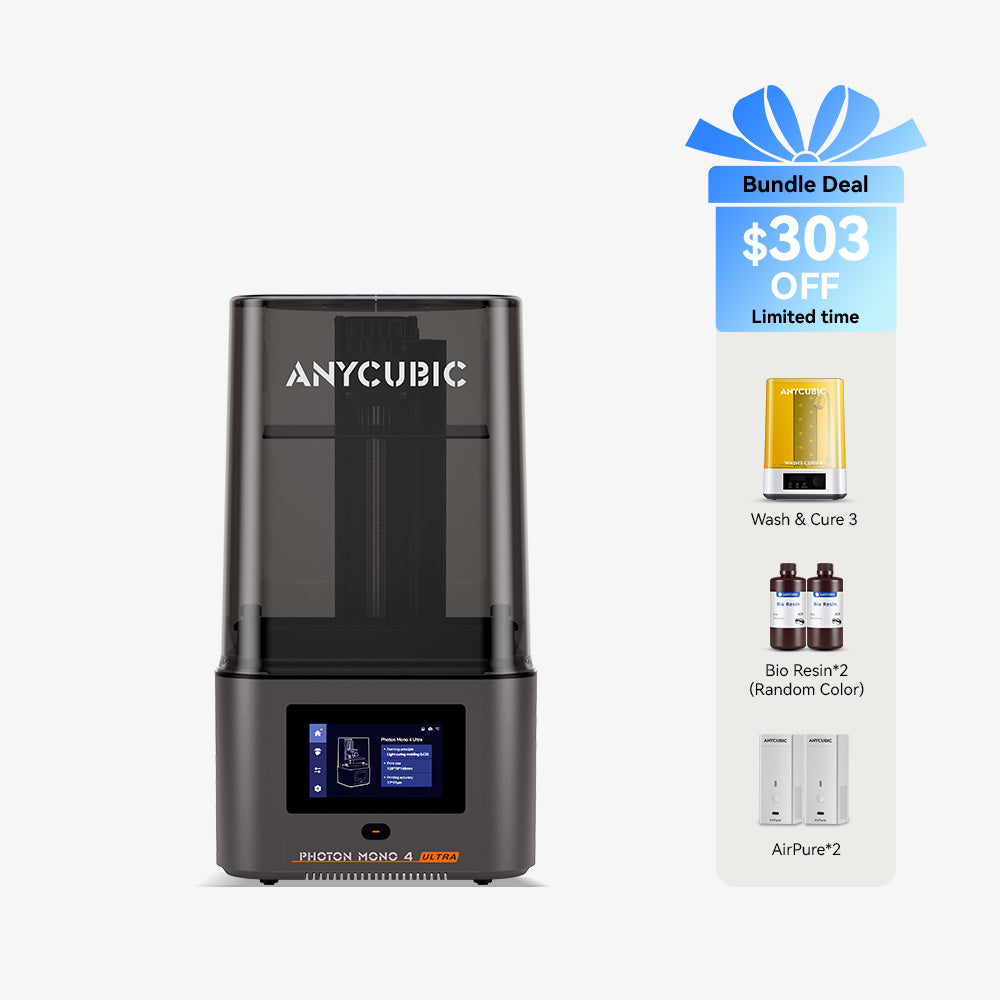

Bundle: Photon Mono 4 Ultra+Wash&Cure 3+Bio Resin*2+AirPure*2

Free Express Shipping

14-Day No Reason Return

30-Day After-Sales Guarantee

One-Year Warranty For 3D Printers

100% Secure Payment

$489.00 CAD
$802.00 CAD $489.00 CAD

Photon Mono 4 Ultra Video

Why Choose Photon Mono 4 Ultra

  • 10K Precision, Almost Detail-Perfect

  • Great Laser, Great Lens, Great Layer

  • There's No Resin to Print Slow

  • Intelligent Release Algorithm

  • Intelligent 360° Self-Check

  • Activated Carbon Air Purifier Compatible
10K Precision, Almost Detail-Perfect.
Printing with 0.02mm Layer Height
105% precision increase compared to Mono 2
X/Y-axis pixel precision reaches 17*17 μm
Level Up & Speed Up.

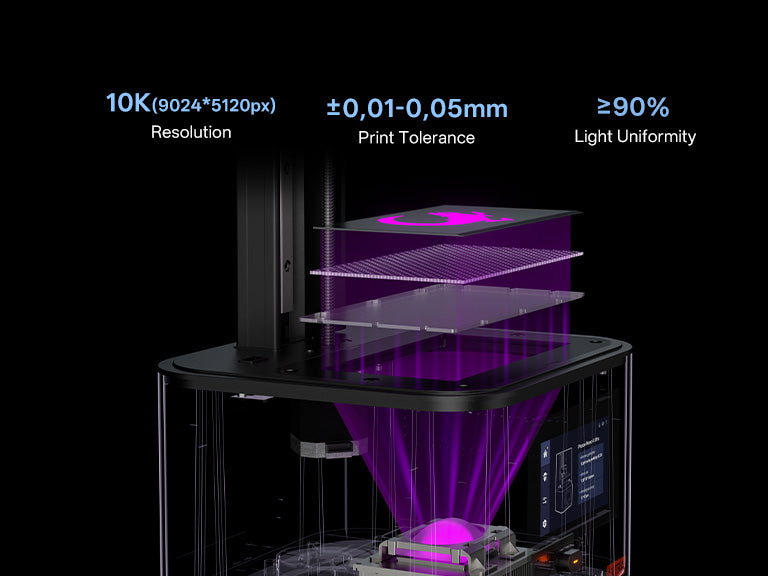

Great Laser, Great Lens, Great Layer
High Precision and Light Uniformity

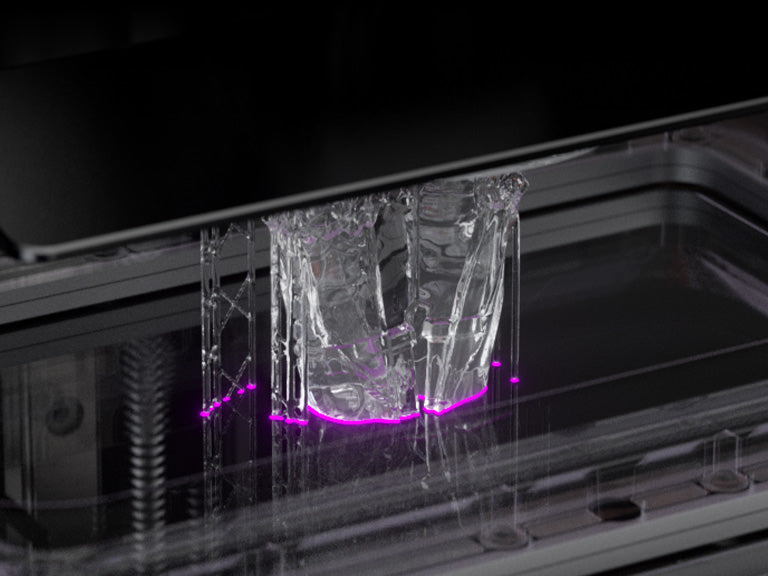

New Generation of Release Film
Save 40% on print time, boost 100% of your spirit
Level Up & Speed Up.

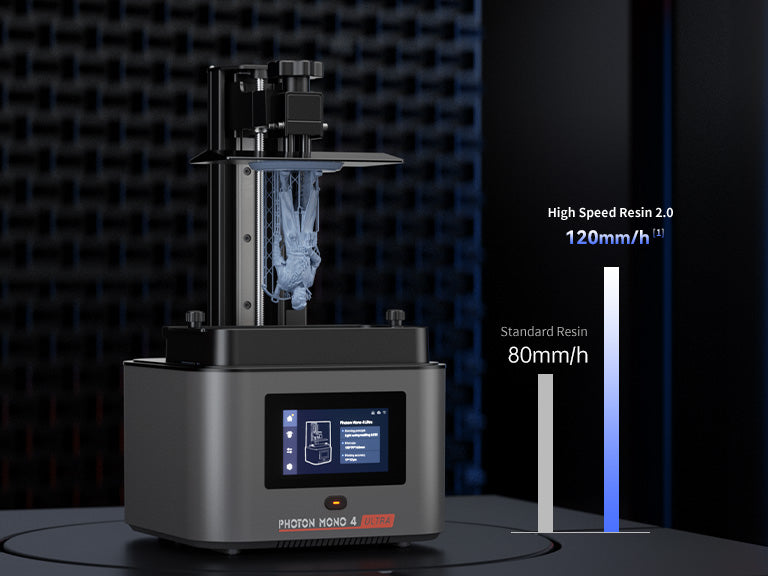

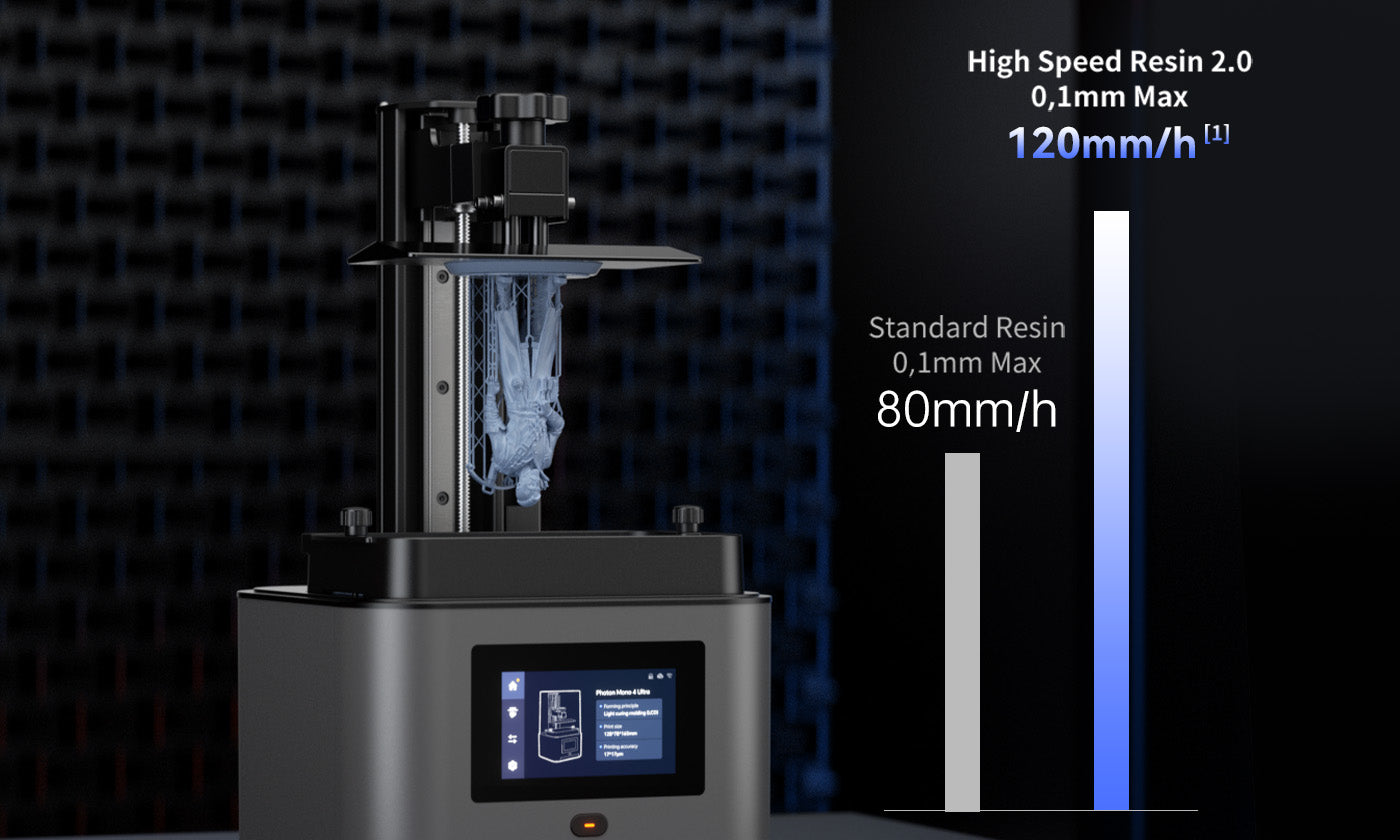

There's No Resin to Print Slow.
0.1mm Layer Height Test Standard
Standard Resin: Max. 80mm/h
High Speed Resin 2.0: Max. 120mm/h*
*Experience high-speed printing under the most challenging printing conditions, even with a layer height at just 0.1mm

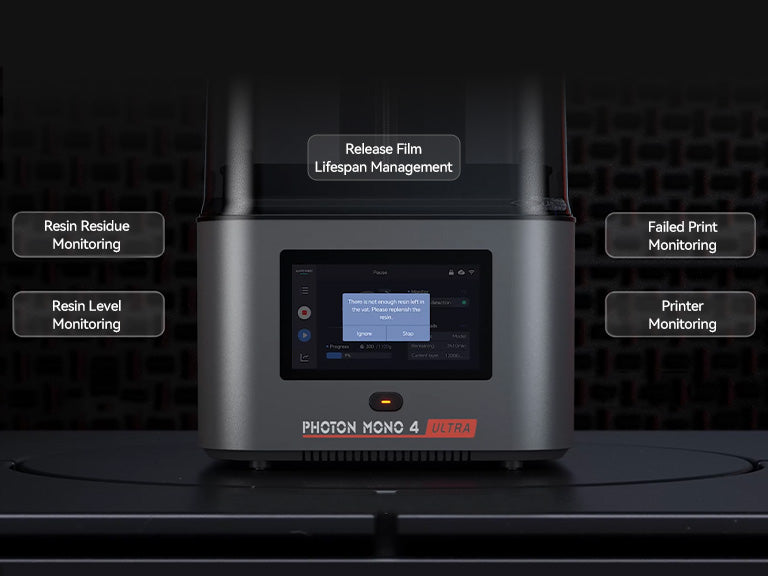

Intelligent 360° Self-Check.
Failed Print Monitoring
Resin Residue Monitoring
Resin Level Monitoring
Release Film Lifespan Management
Printer Monitoring
Intelligent 360° Self-Check.

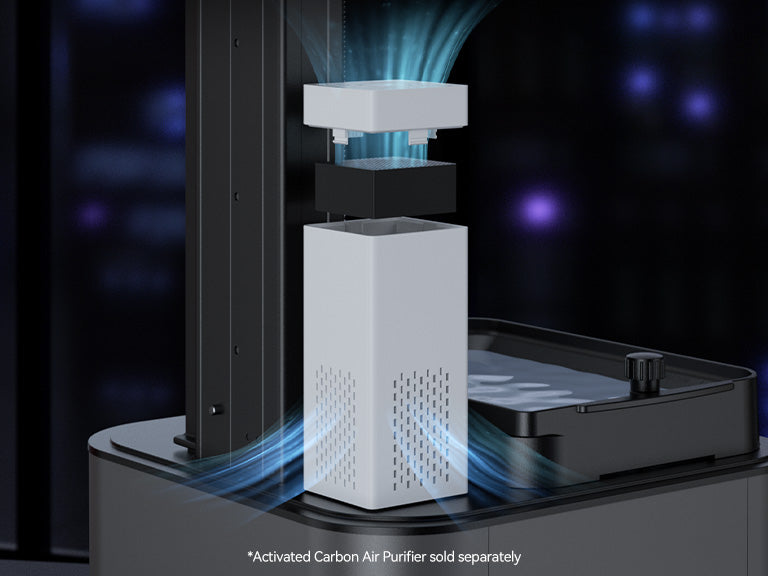

Activated Carbon Air Purifier Compatible.
The 18 mm high-density activated carbon filter, weighing 17 grams, is designed to efficiently capture and neutralize odor molecules produced during printing.
*Activated Carbon Air Purifier sold separately
All-new Advance Resins.
High Speed Resin 2.0: Resilient Against Bending and Cracking
Texture Resin: Produces Excellent Details
Bio Resin: Eco-friendly
All-new Advance Resins.
The Anycubic Software Ecosystem
The Anycubic app
The Anycubic Photon WorkShop
Makeronline creativity community

Specification

Products Comparison

Picture Photon Mono 4 Photon Mono 4 Ultra
Printer Model Photon Mono 4 Ultra Photon Mono 4
Build Volume 153.4mm*87mm*165mm 153.4mm*87mm*165mm
Product Dimensions 231mm*236mm*430mm 230mm*235mm*391mm
Packaging Dimensions 512mm*300mm*305mm 480mm*300mm*300mm
Net Weight 5KG 4KG
Printing Speed Standard Resin 0.1mm Layer Thickness Peak speed 80mm/h | High Speed Resin 0.1mm Layer Thickness Peak speed 120mm/h Standard Resin 0.1mm Layer Thickness Peak speed ≤50mm/h | High Speed Resin 0.1mm Layer Thickness Peak speed ≤70mm/h
Layer Height 0.02-0.15mm 0.03-0.15mm
LCD Screen 7-inch Mono LCD 7-inch Mono LCD
Printing Resolution 10K 10K
X/Y Axis Resolution 17*17um 17*17um
Light Source COB light source+ Fresnel lens+Light uniformity algorithm Parallel matrix upgrade light source
Light Uniformity ≥90% 80-90%
Full-Stage Intelligent Assisted Printing System √ ×
Light Intensity ≥3500μW /cm² ~3000μW /cm²
Release Film ACF FEP
AirPure Optional(USB) Optional(Rechargeable)
Display Screen 4.3" TFT touch-control 2.8" TFT touch-control
Anycubic App √ ×
Machine leveling 4-point manual leveling 4-point manual leveling
Slicing Software Photon Workshop Photon Workshop
File Transfer USB & WiFi& LAN MODE(Q4) USB

In The Box

  • Photon Mono 4 Ultra

  • Print Platform * 1

  • Resin Vat * 1

  • Manual * 1

  • Sreen Protector Kit

  • Leveling paper

  • Glove

  • Funnels

  • Scrapers

  • Hex Key Set

  • USB Drive

  • Power Cord

FAQs

How to get more information about Photon Mono 4 Ultra?

A: For more information on the Photon Mono 4 Ultra, please visit the Anycubic Wiki.

Q:How does the Light Uniformity Algorithm improve print quality?

A：The Light Uniformity Algorithm ensures uniform light exposure across all layers, with a uniformity rate of ≥90%. This reduces dimensional errors, delivering consistent and high-quality prints even on larger models.

Q: What advantages does the COB light source with Fresnel lens offer?

A: The advanced COB light source, combined with a Fresnel lens, ensures precise light distribution with an angle of only 3°. This eliminates stray light interference and provides uniform illumination, improving print detail and accuracy.

Q: How does the ACF film enhance print performance?

The new ACF film reduces surface texture, allowing for better light penetration and smoother resin release. This results in faster print times and higher print success rates, reducing the chance of layer separation.

Q: What is the power consumption of Photon Mono 4 Ultra?

A: The overall rated power of the machine is 66W.

Q: What speed improvements does the Photon Mono 4 Ultra offer?

With Anycubic's High Speed Resin 2.0, the Photon Mono 4 Ultra can reach a printing speed of up to 120mm/h at 0.1mm layer height, a 60% speed increase over its predecessor. Standard resin can print at a maximum of 80mm/h.

Q: How does the printer detect and prevent failed prints?

The Photon Mono 4 Ultra features failed print detection that monitors anomalies like cracks, detachment, or layer separation. When issues are detected, the printer pauses and notifies the user, helping prevent wasted resin and time.

Q: What kind of models can I print with the Photon Mono 4 Ultra?

You can print highly detailed models, miniatures, and complex designs with ease. The combination of 10K resolution and precise optical adjustments ensures models with intricate details and smooth surfaces.

Q: How does the Photon Mono 4 Ultra handle resin monitoring?

The printer includes residual resin detection and automatic resin level monitoring. It will alert users to clean any solid residues in the vat and notify them when the resin level is too low for the next print.

Q: Does the Photon Mono 4 Ultra support third-party software?

1. Adapt to the official slicing software, which supports vector slicing;
2. Compatible with Chitu, Tangoo and Lychee slicing software, slicing mode aligned with WorkShop, vector format turned off.
