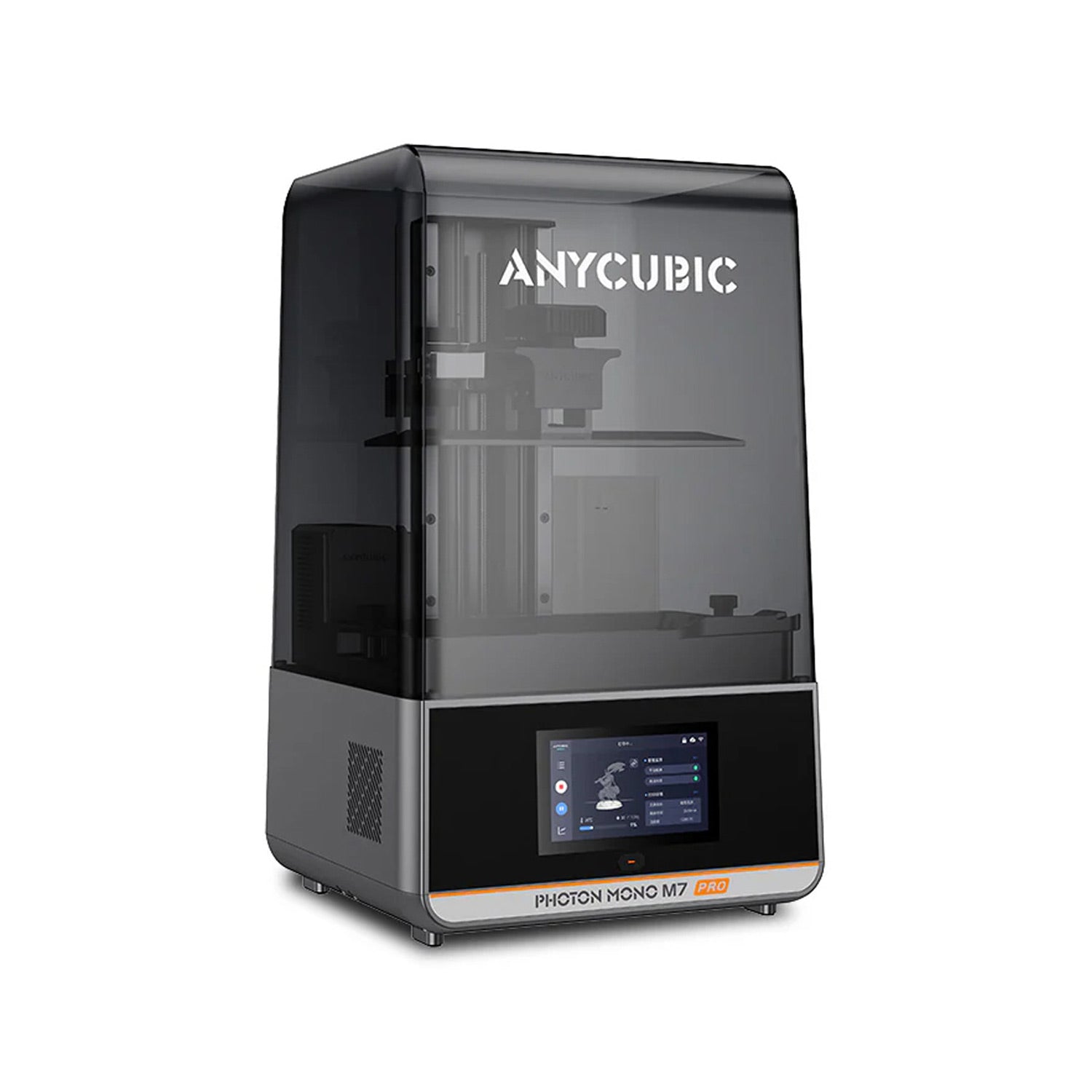

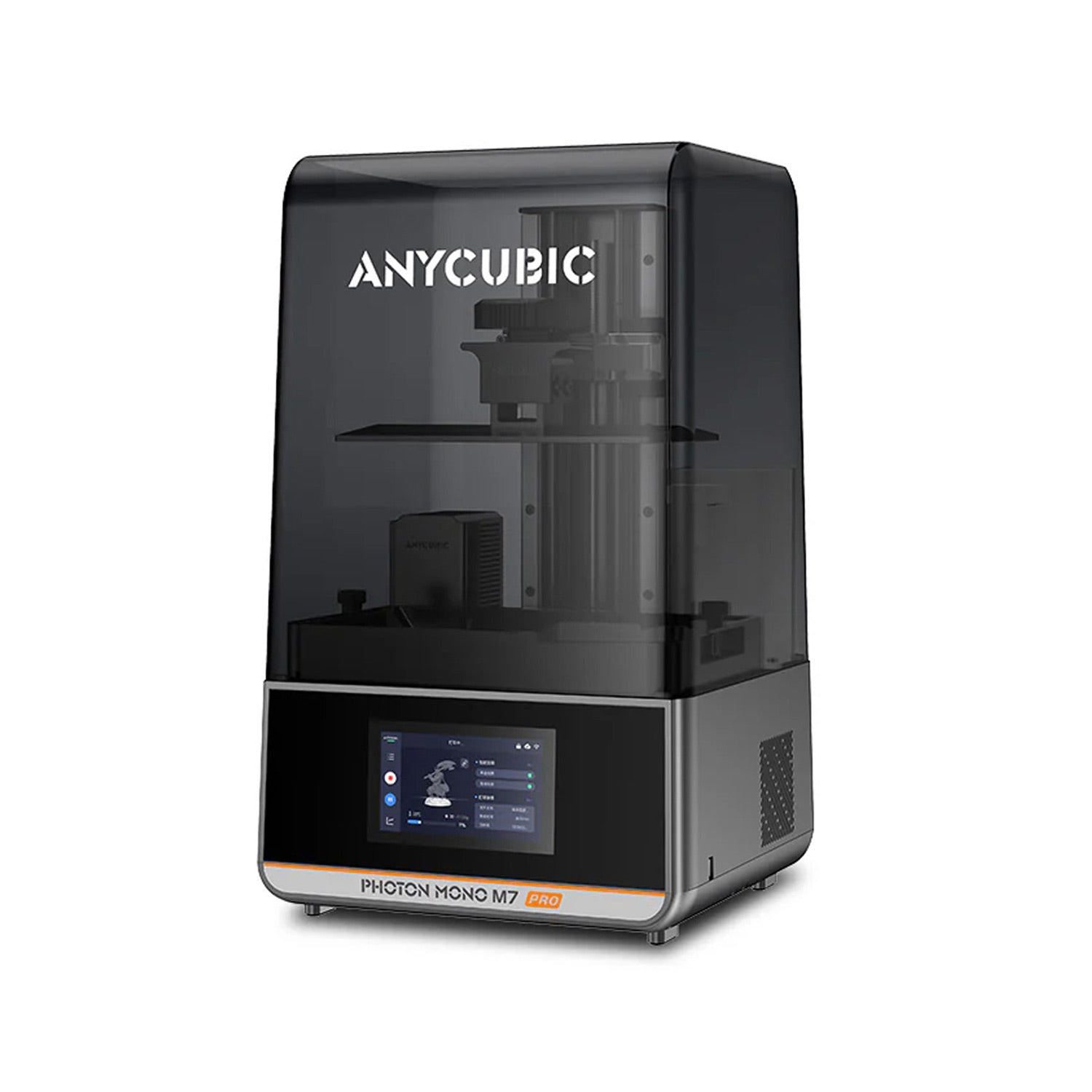

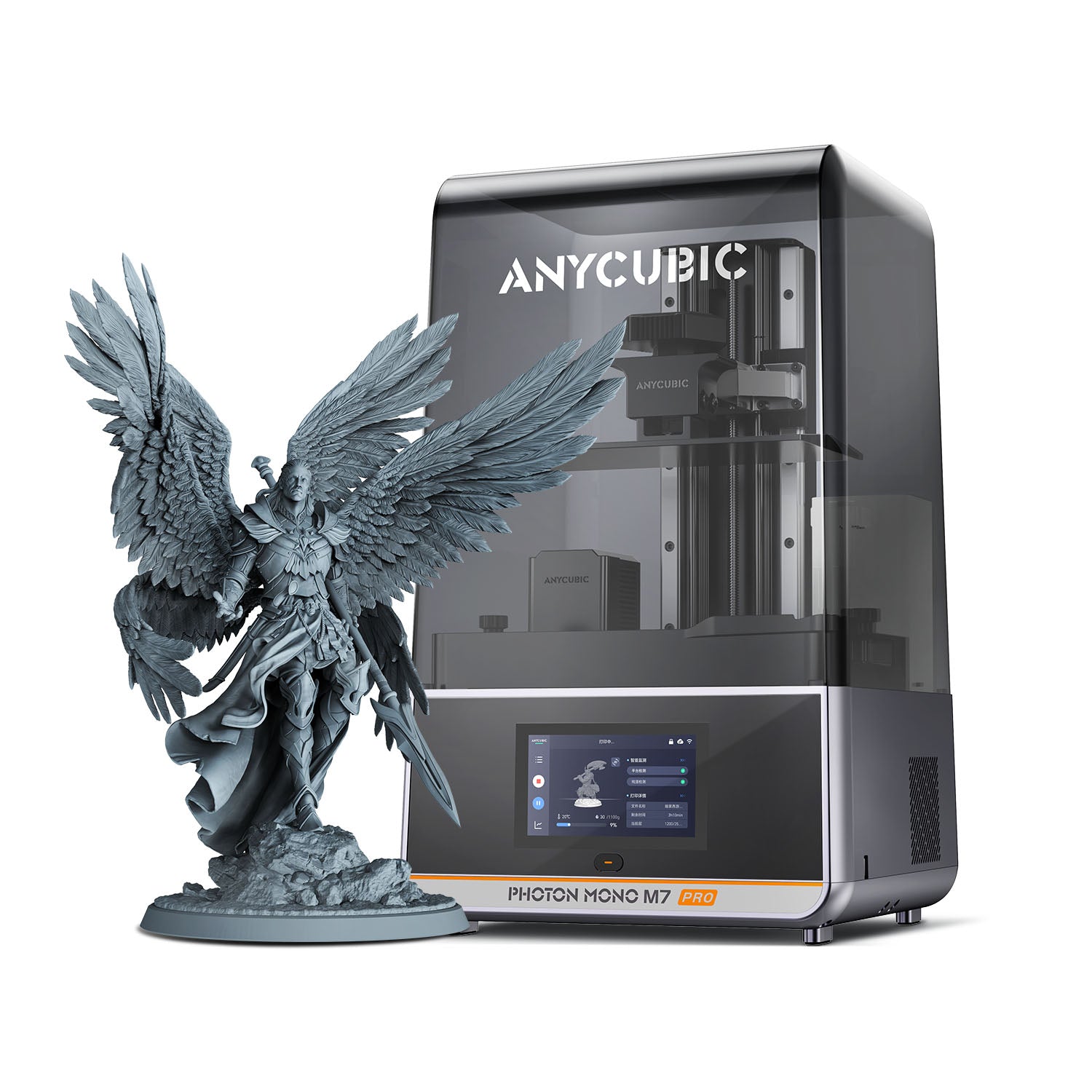

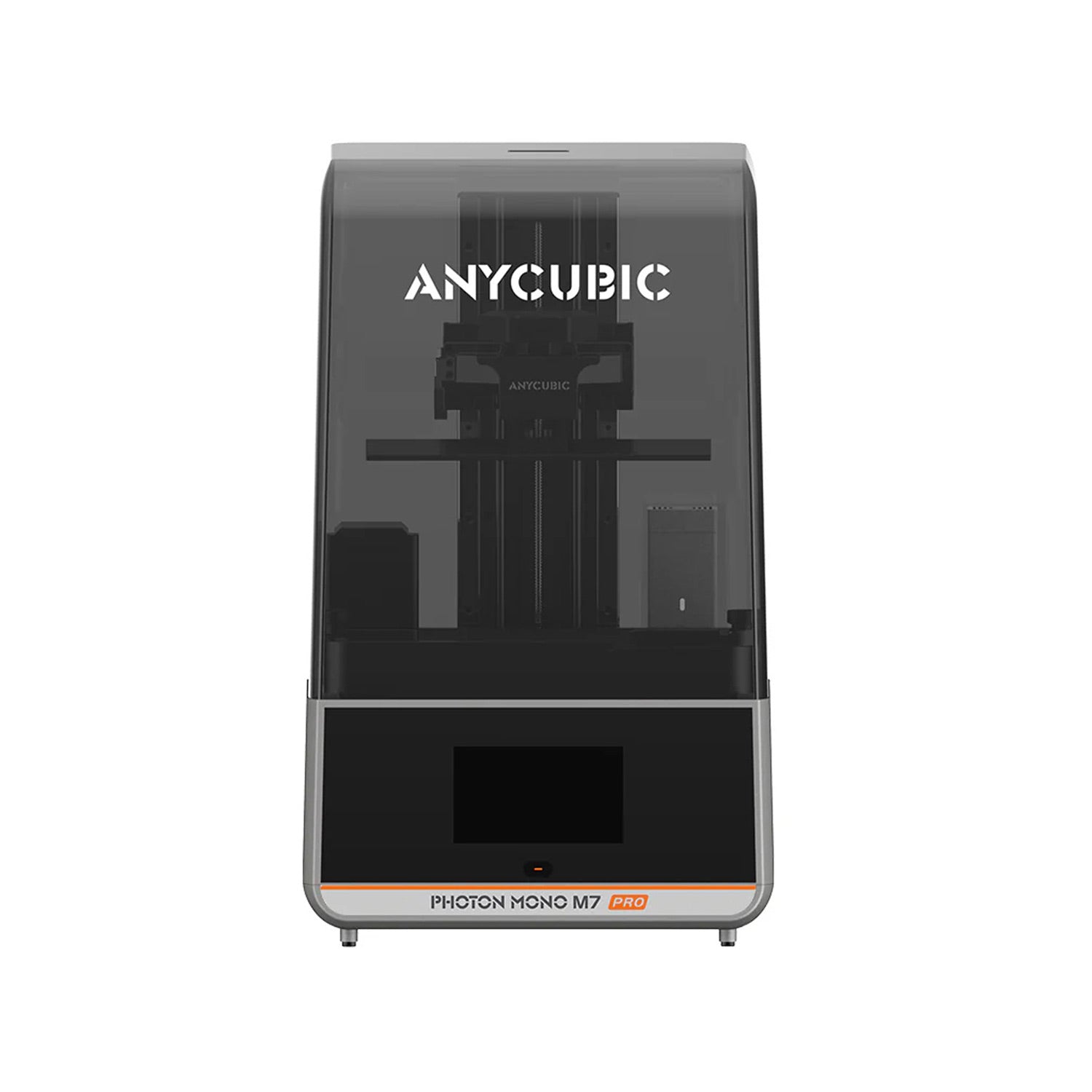

Anycubic Photon Mono M7 Pro

$699.00 CAD
$948.00 CAD $699.00 CAD
-$249.00 CAD
Shipping calculated at checkout.

Product Features
● 170mm/h with High-speed Resin
● 10.1'', 14K (13320 * 5120) High-Precision Optical System
● Auto-Adaptive Technology Control Heating
● Auto Resin Refill, Withdrawal
● Intelligent Workflow-Assist Printing
● LighTurbo3.0 (COB+Fresnel Lens)
🔥 Pioneering 14K High-Precision, Ultra-Fast, Intelligent Resin 3D Printer
⚡ Price: From $699 for Fantastic Weeks Sale

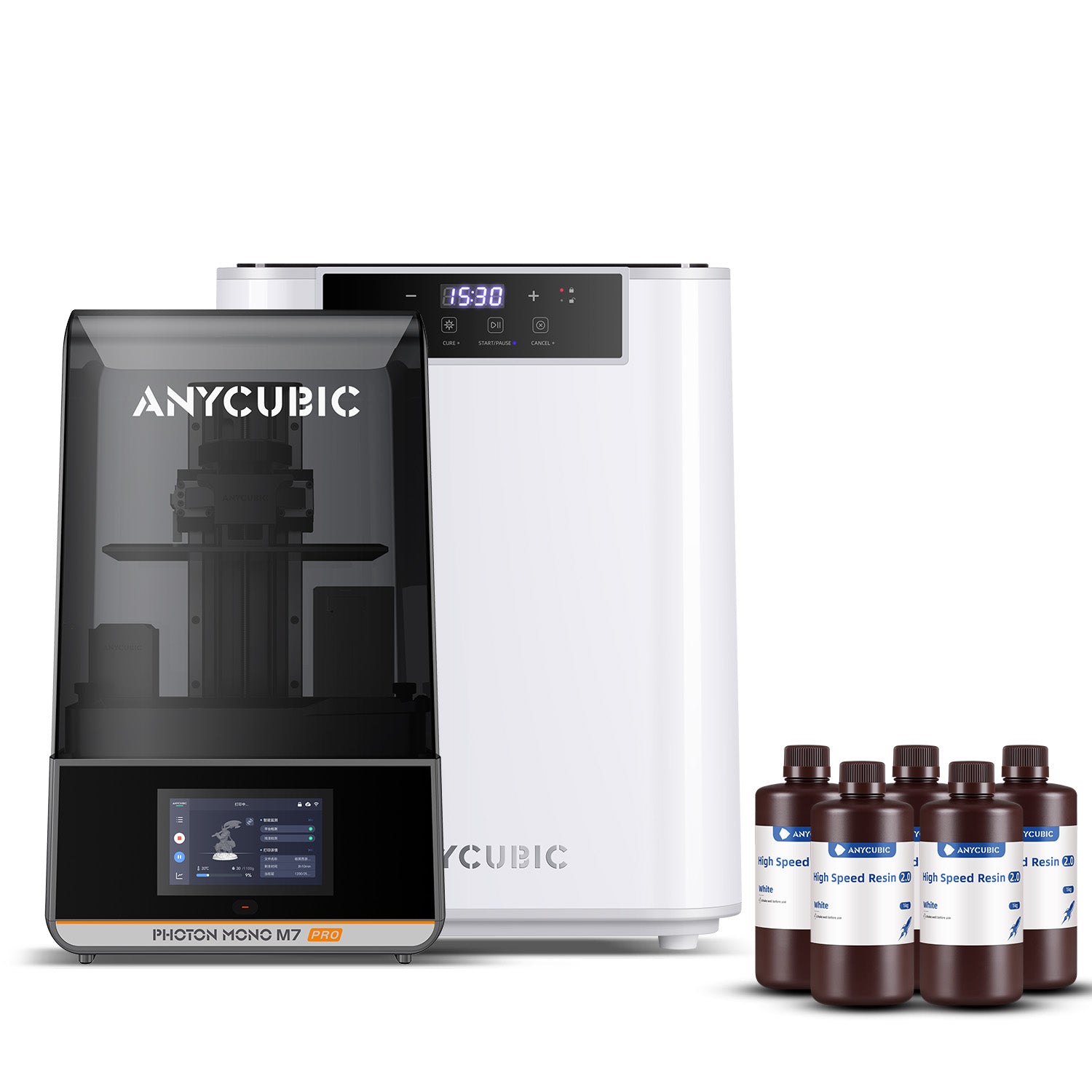

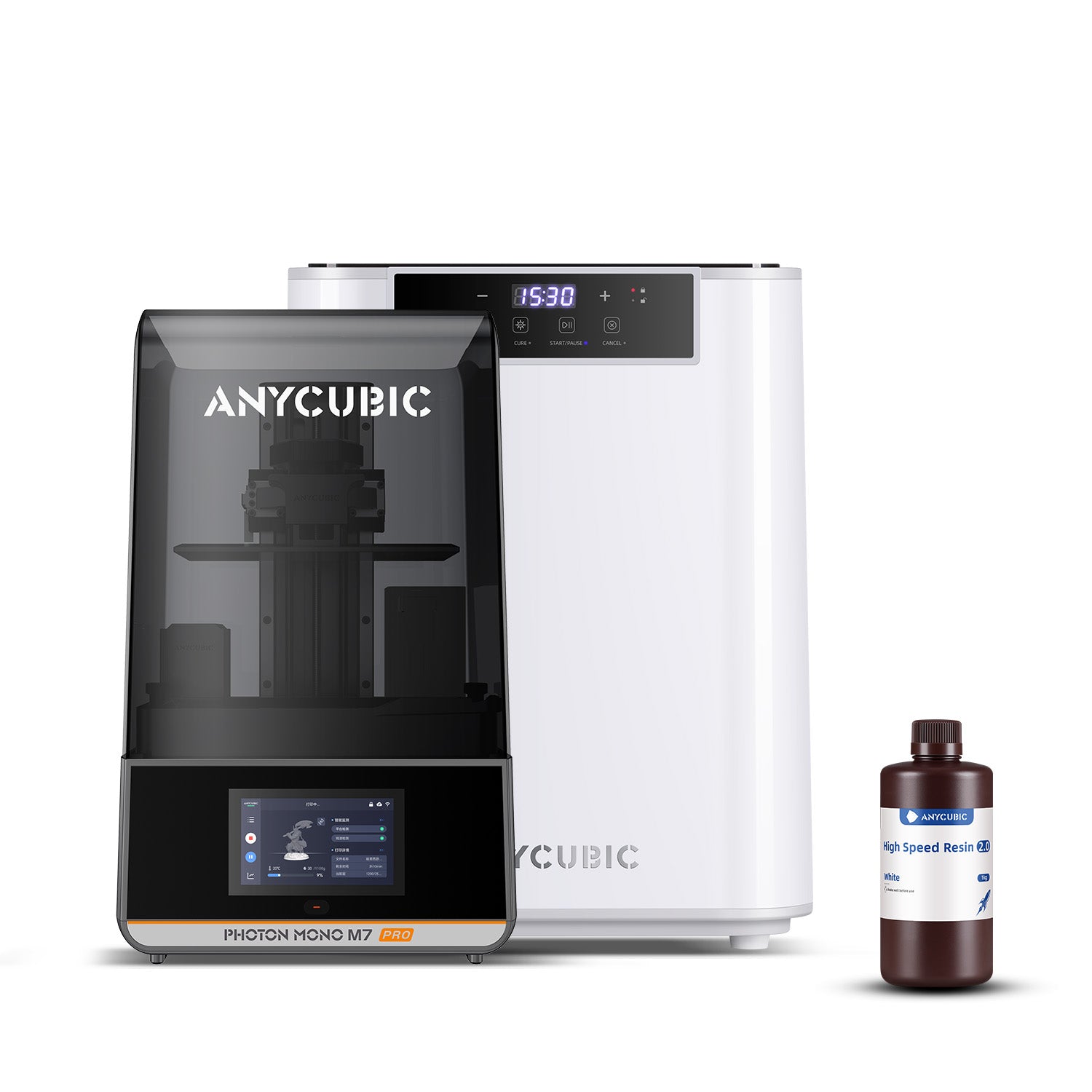

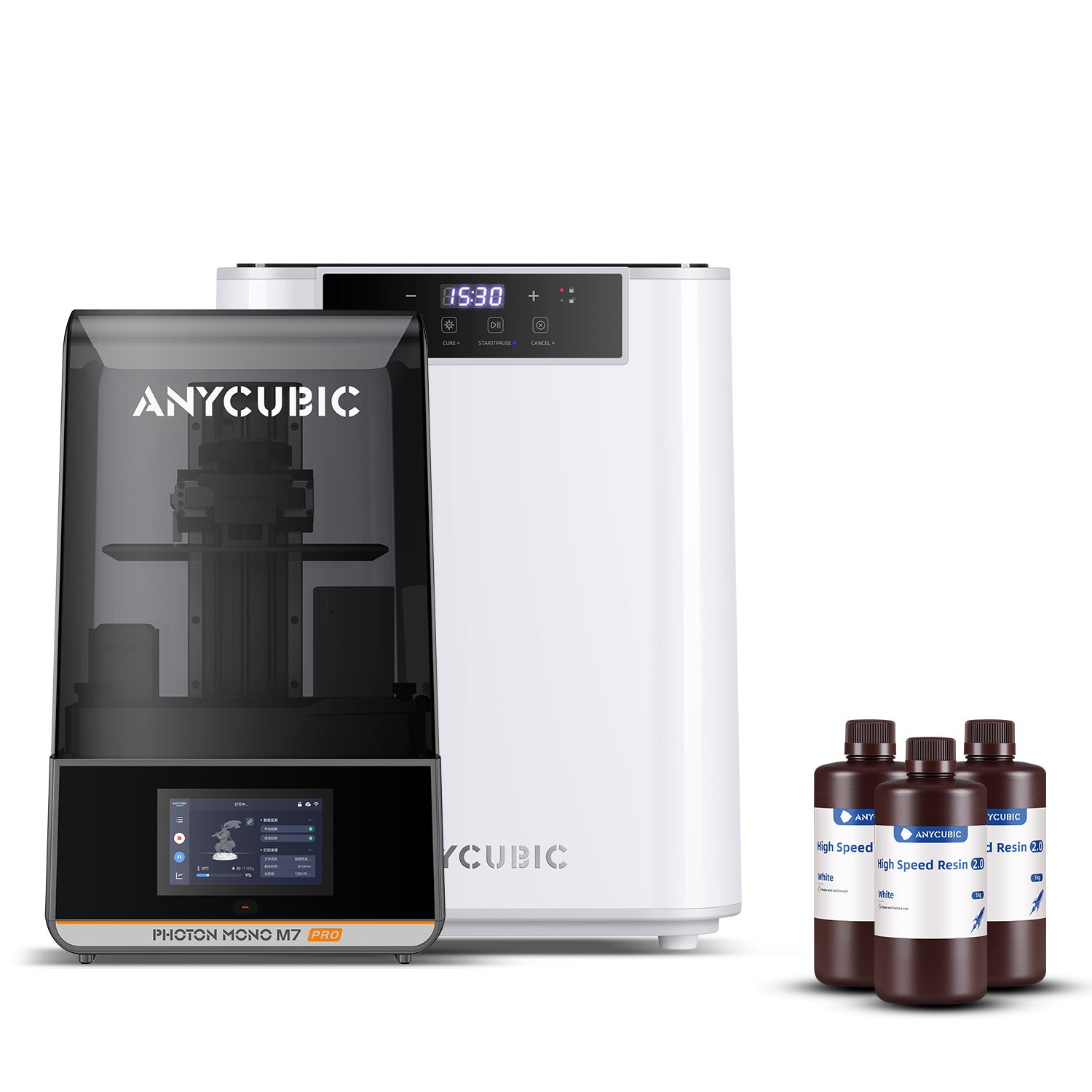

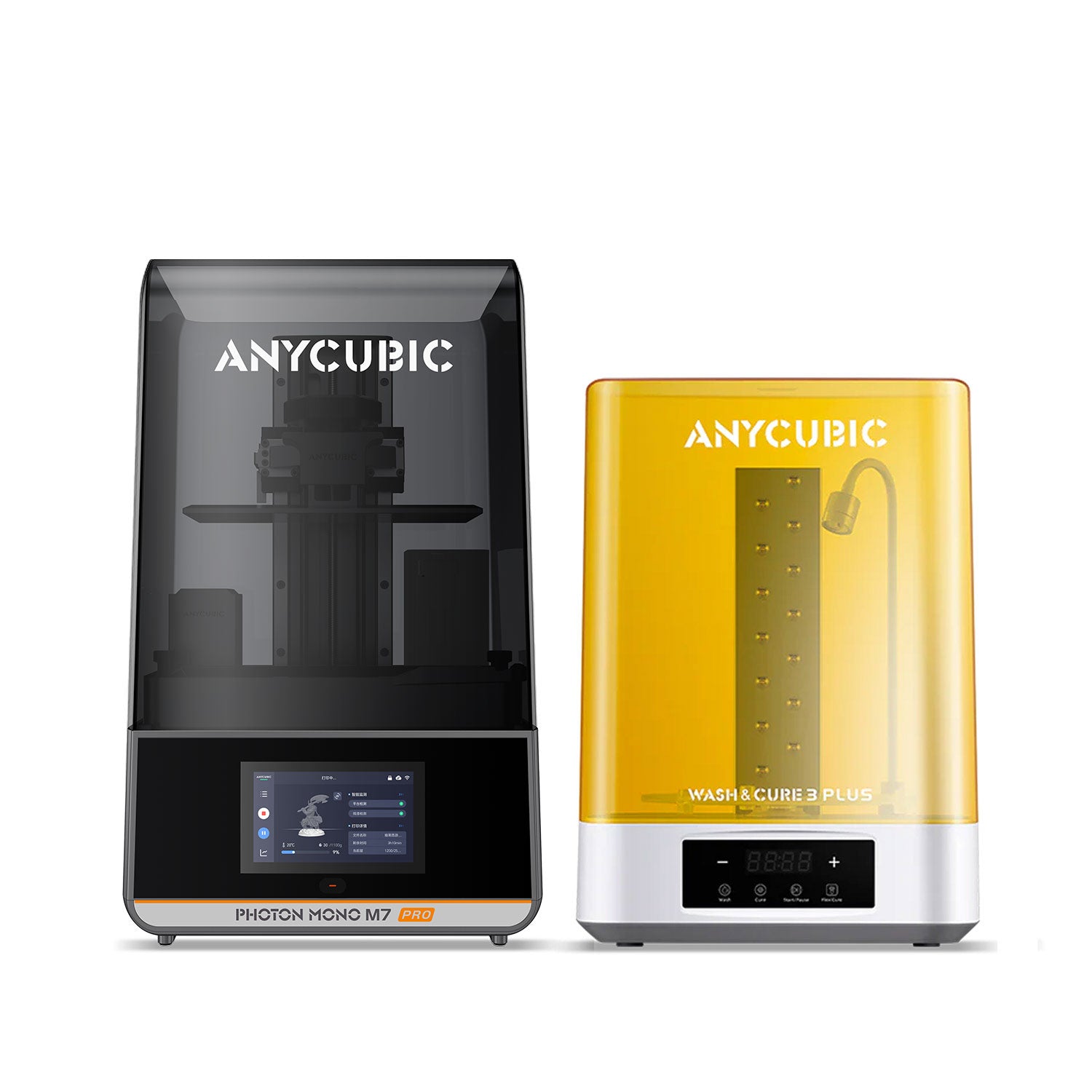

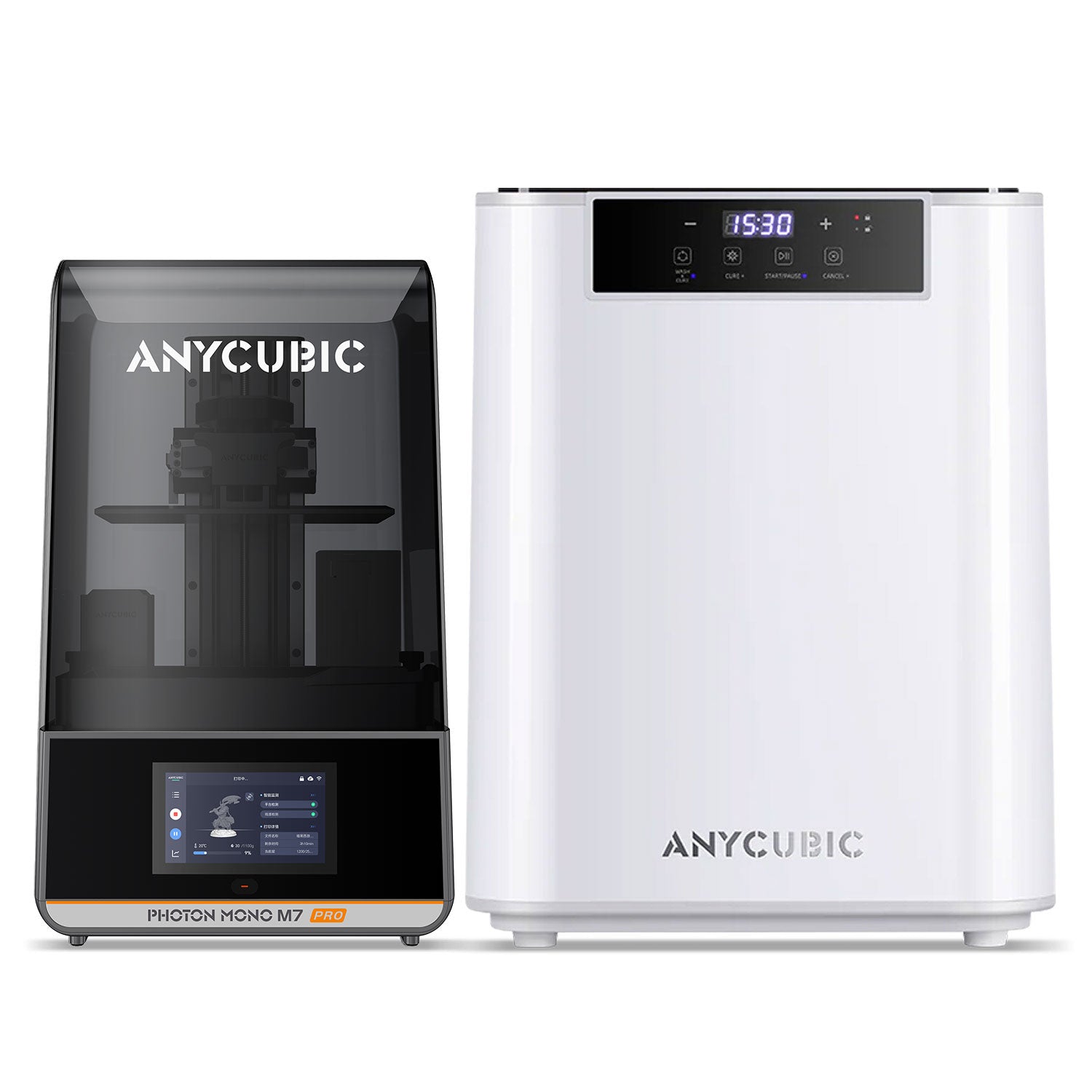

Include Wash&Cure Machine: None

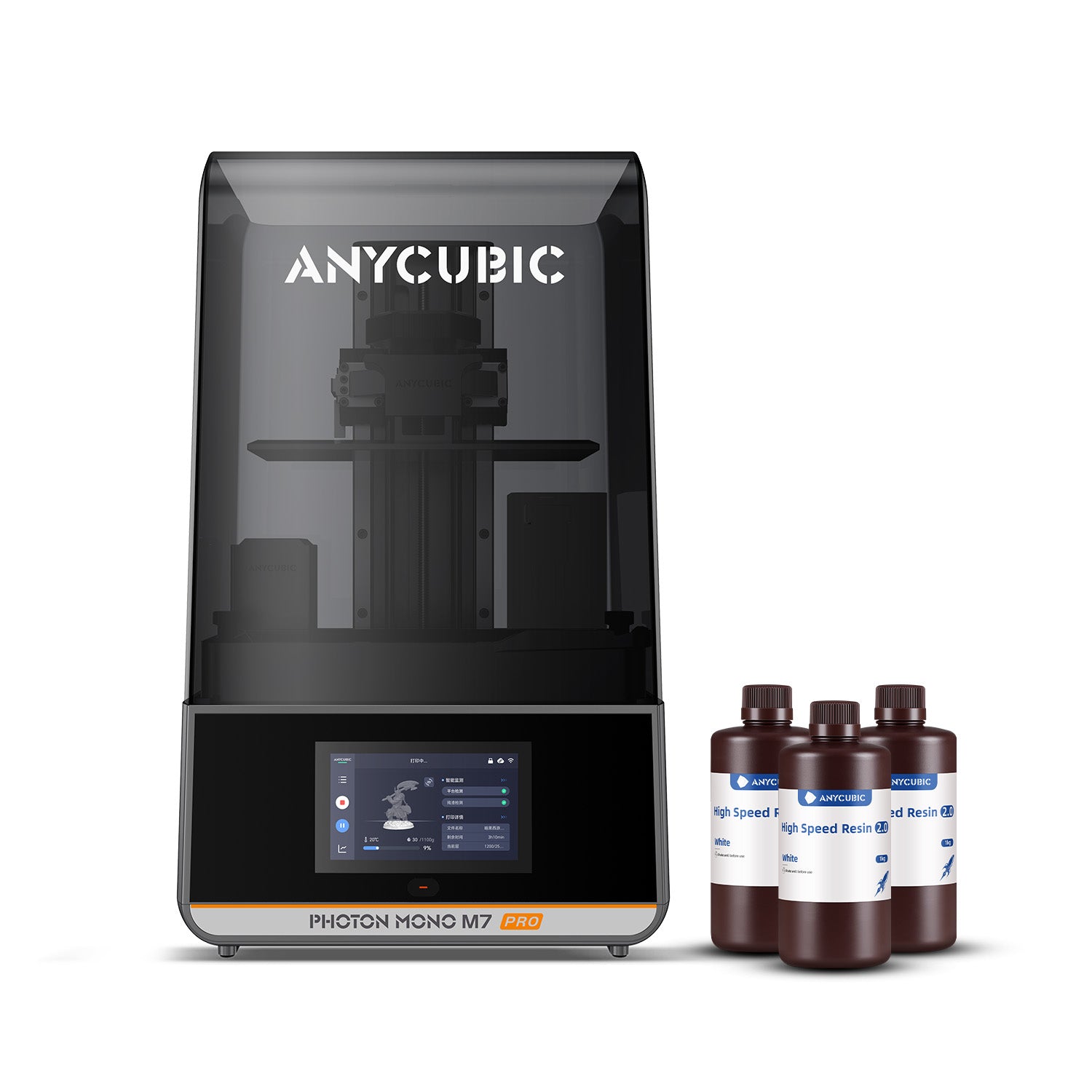

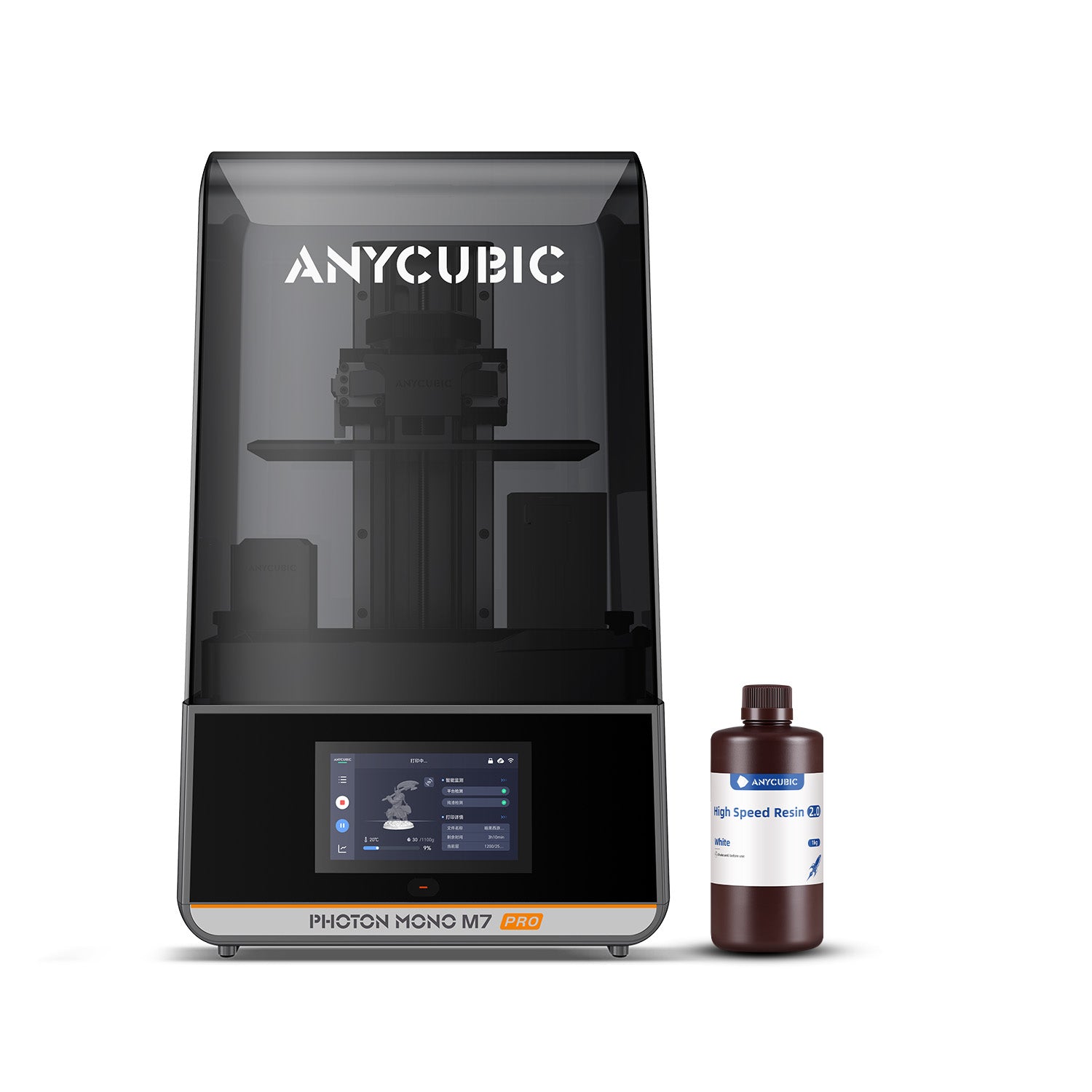

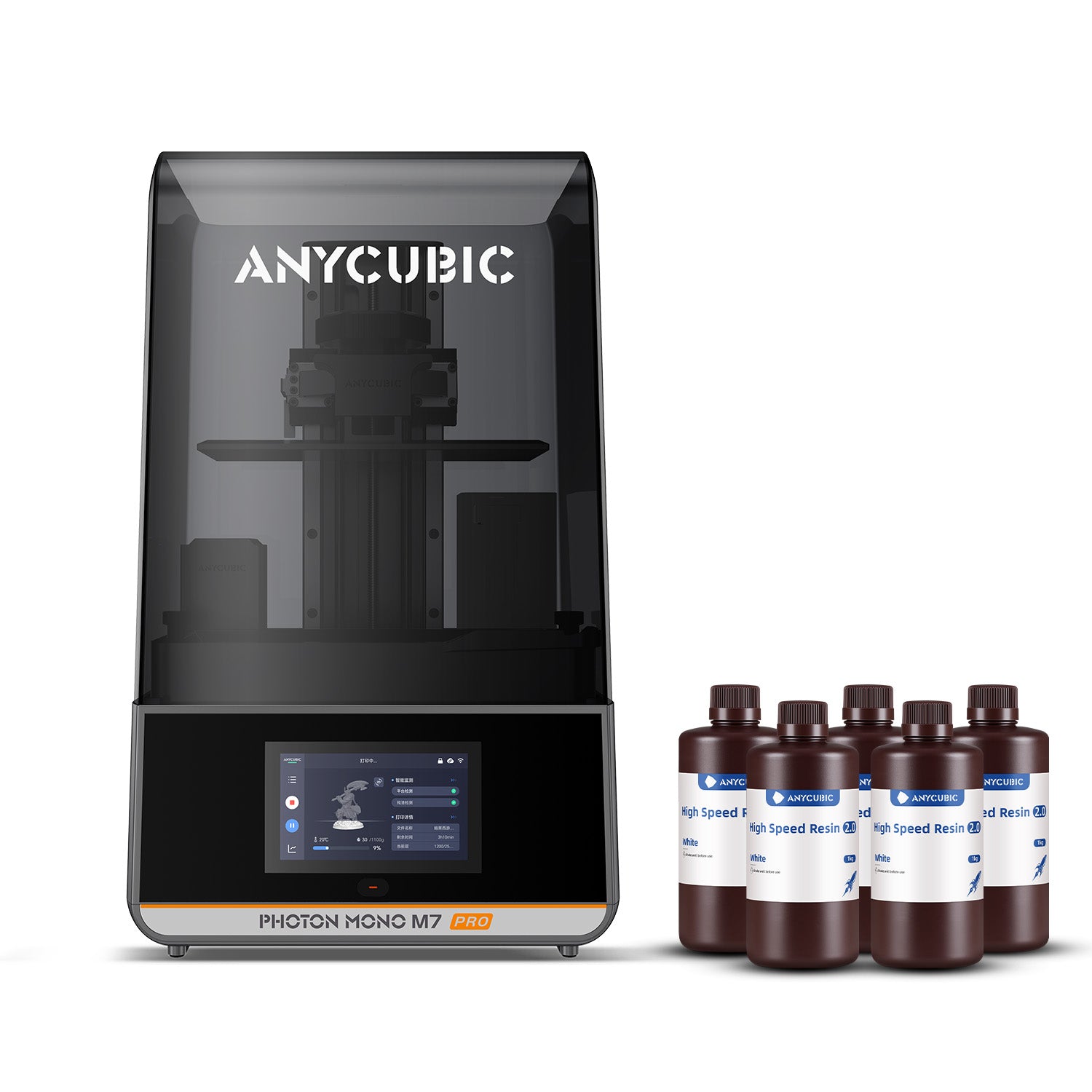

Include High Speed Resin: None
Included Accessories: None
🚚 Ships in 24 hours

Free Express Shipping

14-Day No Reason Return

30-Day After-Sales Guarantee

One-Year Warranty For 3D Printers

100% Secure Payment

$699.00 CAD
$948.00 CAD $699.00 CAD

Photon Mono M7 Pro Video

Why choose Photon Mono M7 Pro?

  • Full Speed Ahead

  • Ultra-high-precision LighTurbo3.0

  • Resin Auto-Fill

  • Dynamic Temperature Control Resin Vat

  • Expansive Space for Your Creativity

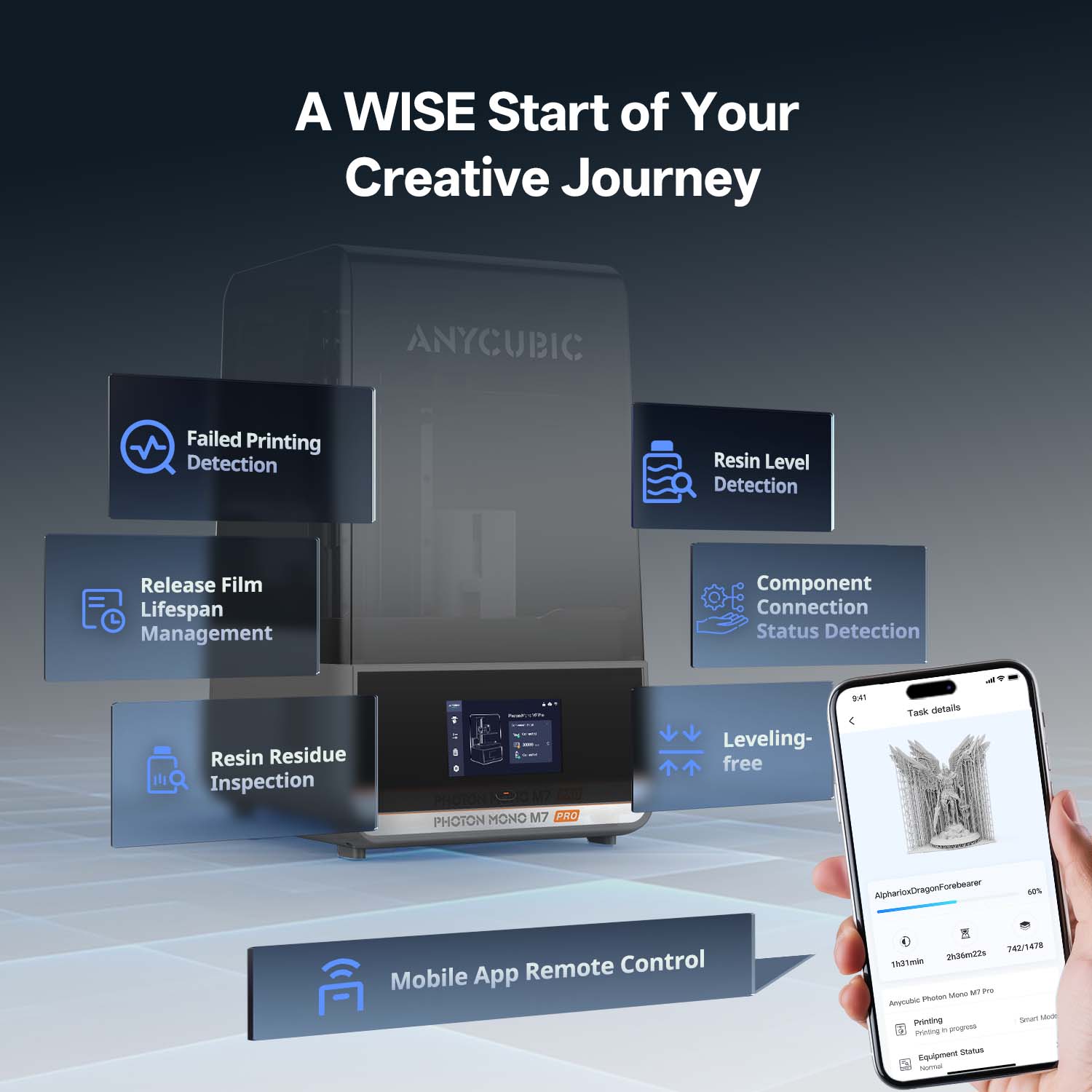

  • A WISE Start of Your Creative Journey

Sample Prints

Full Speed Ahead
170mm/h at 0.1mm① Layer Height.
Standard Resin 130mm/h② at 0.1mm Layer Height.
Multiple Technological Breakthroughs to Unleash Speed.
Full Speed Ahead
The All-New 14K Optical Sources System LighTurbo 3.0
·The COB Light Source System, Combined with Fresnel Lenses and Front-facing Reflectors Maintain Light at ≤3°.
·≥90% Light Uniformity on the Screen Creates ±0.01-0.05mm Tolerance.
Light-off Compensation Algorithm Dynamicly Adjust the Light-off Time.
14K Ultra-high Definition Screen.
The All-New 14K Optical Sources System LighTurbo 3.0
Expansive Space for Your Creativity

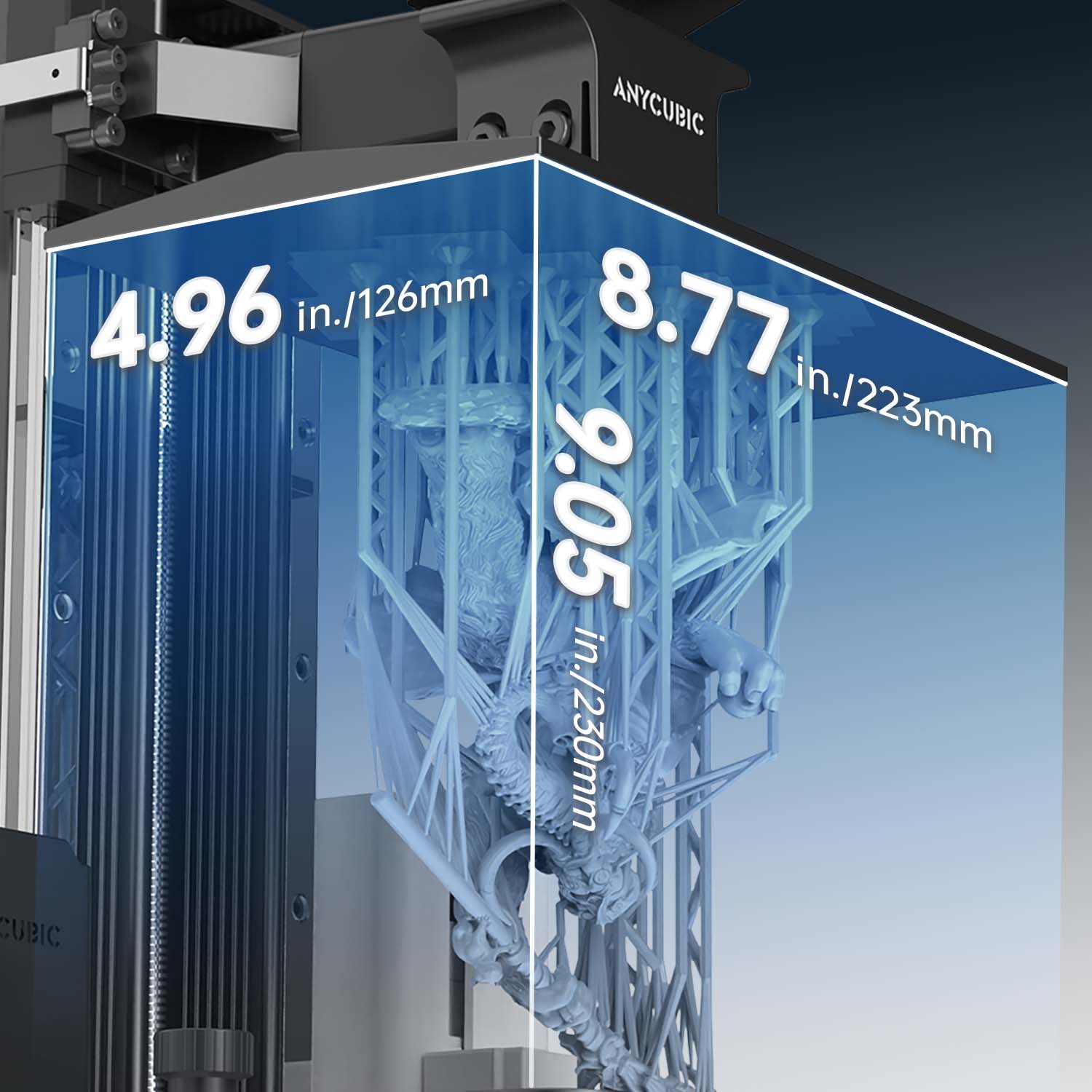

Photon Mono M7 Pro has a build volume of 223*126*230mm, providing ample space for your creativity.
The All-New 14K Optical Sources System LighTurbo 3.0
Intelligence-Assisted Printing System

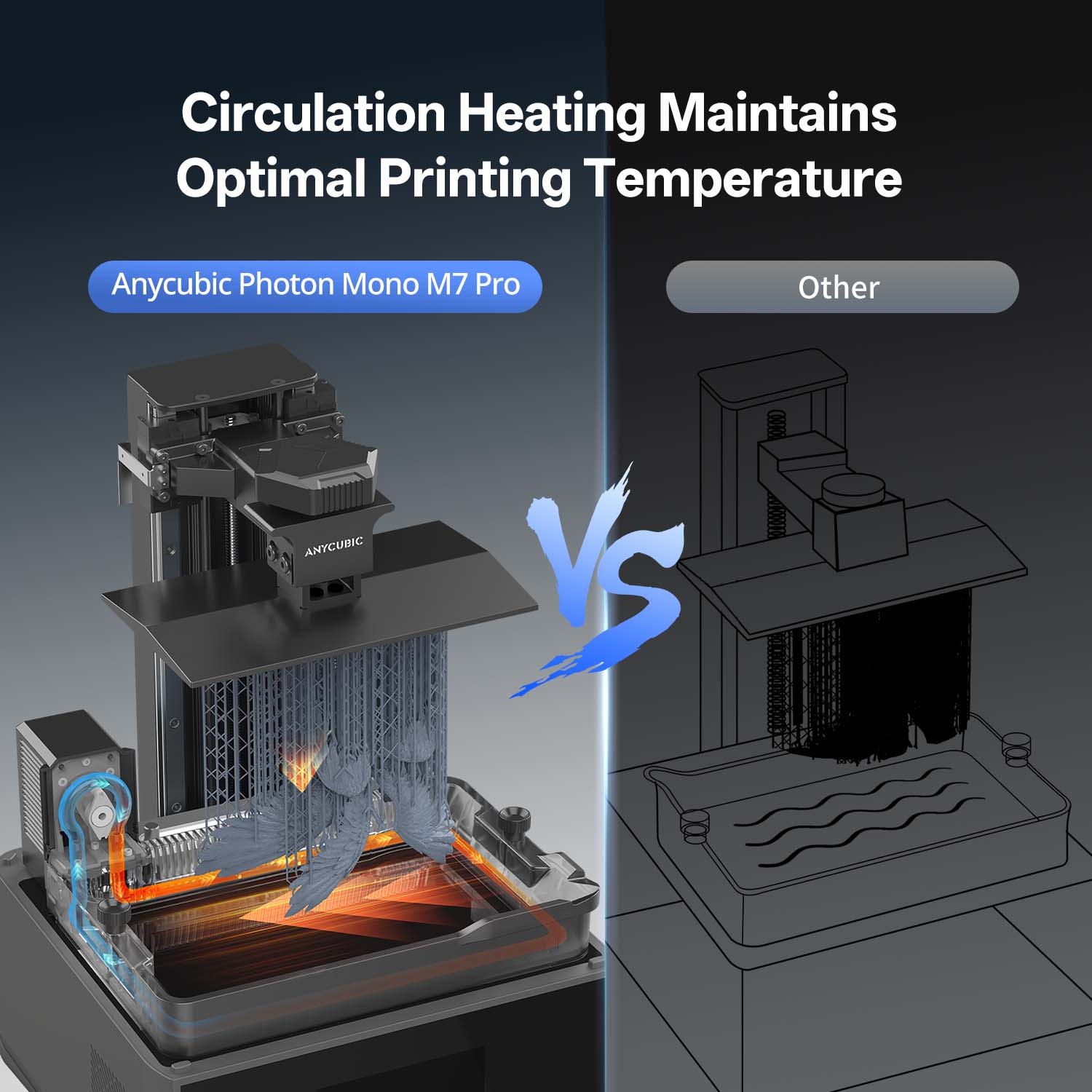

Dynamic Temperature Control Resin Vat Maintains Optimal Resin Temperature.

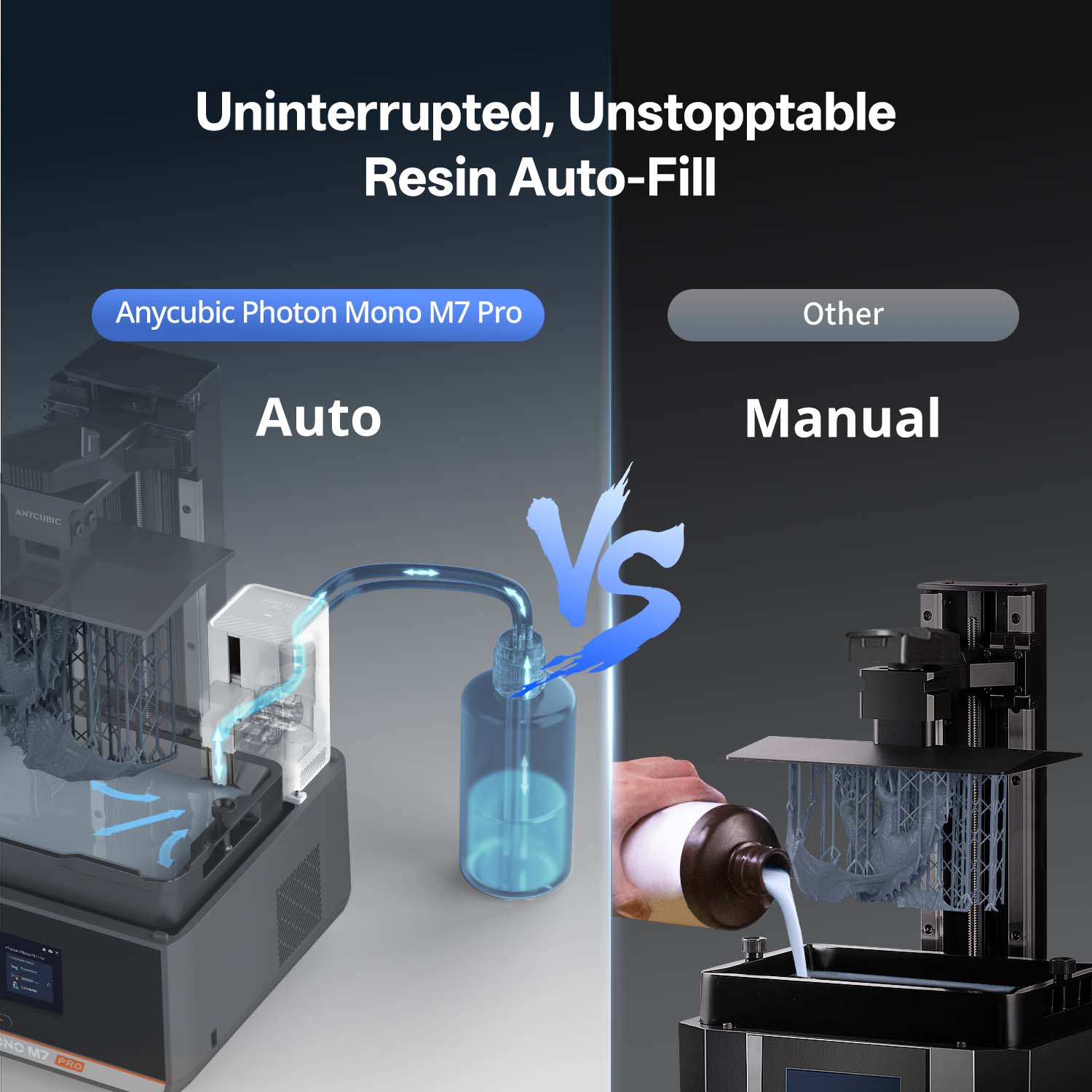

Automatic Resin Refill and Recycle, Cutting Costs while Boosting Efficiency.
Leveling-free.
Automatic Intelligent Detections
Failed Print Detection, Stops Printing when Anomaly is Detected③.
Release Film Lifespan Management Reminder.
Resin Residue Detection for Screen Protection.
Resin Level Detection Ensures Optimal Resin Quantity for Printing.
Automatic Intelligent Detections
A Refreshing Experience
Optional ventilation hose attachment
for reduce resin odor and improve air quality
The Anycubic Software Ecosystem
The Latest Anycubic Photon WorkShop
Makeronline Creativity Community

Specification

Tech specs

  • Build volume

    6.5L

  • Printing volume

    223*126*230mm

  • Printing speed

    130mm/hrs, 0.1mm Layer Height Print Speed With Standand Resin; 170mm/hrs, 0.1mm Layer Height Print Speed With High Speed Resin

  • Machine leveling

    Leveling-free

  • Z axis

    TypeT (Transport Ball Screw)

  • Lcd screen size

    10.1", 14K (13320 * 5120)

  • Light source

    LighTurbo 3.0 (COB+Fresnel Lens)

  • Build platform

    Laser-carved Plate

  • Operating screen

    4.3" IPS Touch-control

  • Slicing software

    Anycubic Slicing, CHITU,Tango (CHITU and Tango can be supported around the end of May)

  • Material

    Compatible with kinds of resin (high speed, water-washable, standard, ABS-ike, plant-based, etc.)

  • Machine dimensions

    312x315x520mm

  • Machine weight

    12.8KG

Products Comparison

Picture Photon Mono M7 Max Photon Mono M7 Pro Photon Mono M7
Printer Model Photon Mono M7 Max Photon Mono M7 Pro Photon Mono M7
Suggested Retail Price $1279 $949 $739
Build Volume 298mm x 164mm x 300mm （14.7L） 223*126*230mm 223*126*230mm
Printing Speed Standard Resin 0.05mm layer height: ≤31mm/h peek speed | Standard Resin 0.1mm layer height: ≤63mm/h peek speed | High Speed Resin 0.1mm layer height: ≤86mm/h peek speed Standard Resin 0.1mm layer height: 130mm/h peek speed | High Speed Resin 0.1mm layer height: 170mm/h peek speed Standard Resin 0.1mm layer height: 90mm/h peek speed | High Speed Resin 0.1mm layer height: 150mm/h peek speed
Layer Height 0.01-0.15mm 0.01-0.15mm 0.01-0.15mm
LCD Screen 13.6-inch Mono LCD 10.1-inch Mono LCD 10.1-inch Mono LCD
LCD Resolution 7K 14K 14K
X/Y Axis Resolution 46*46μm 16.8*24.8μm 16.8*24.8μm
Light Source COB light source+ Fresnel lens+Light uniformity algorithm COB light source+ Fresnel lens+Light uniformity algorithm COB light source+ Fresnel lens+Light uniformity algorithm
Light Uniformity ≥ 90% ≥ 90% ≥ 90%
Light Intensity 4500±10%μW/cm² 5500±10%μW/cm² 4500±10%μW/cm²
Release Film Improved ACF film Improved ACF film Improved ACF film
Intelligence Assisted Printing System √ √ √
Air vent √ √ √
Dynamic temperature control resin vat √ √ ×
Resin Auto-Fill Unit √ √ ×
Display Screen 4.3-inch colored control screen 4.3-inch colored control screen 4.3-inch colored control screen
Anycubic App √ √ √
Machine leveling 4-point manual leveling Leveling-free Leveling-free
Slicing Software Photon Workshop & Chitubox & Lycheeslicer（Q4） Photon Workshop & Chitubox & Lycheeslicer Photon Workshop & Chitubox & Lycheeslicer
File Transfer USB & WiFi & LAN MODE（2025 Q1） USB & WiFi & LAN MODE（2025 Q1） USB & WiFi & LAN MODE（2025 Q1）
Product Dimensions 425*362*652mm 312*315*520mm 312*315*520mm
Packaging Dimensions 785*520*490mm 620*395*395mm 620*395*395mm
Net Weight 24KG 12.8KG 12KG

In The Box

  • Photon Mono M7 Pro

  • Print platform * 1

  • Resin vat * 1

  • WiFi antenna

  • Hex key set

  • Protective equipment

  • Funnel * 5

  • Scraper * 2

  • Sreen protector kit

  • Leveling paper

  • Manual * 1

  • USB drive * 1

  • Auto-fill unit

  • Power cord

FAQs

What do the ①②③④⑤ annotations in the product details mean?

The numbered annotations on the product page correspond to the following explanations:
① The data was measured using Anycubic high speed resin and sourced from Anycubic lab.
② The data is the from Anycubic lab.
③  Millionth of a second.
④ When printing with a 0.05mm thickness in standard high-precision mode, the speed increase value may vary among different models.
⑤ Breakage and bottom dropout detection support a minimum area of 15*15mm.

What is the hottest temperature that the heater can heat the resin to? Is the temperature control adjustable?

It is adjustable.The default temperature is 25 centigrade, and can be set at 20-40 centigrade.

Can the auto fill unit be used while the cover is on?

Yes it can be used while the cover is on.

Do i need to buy high speed resin for the fast prints? Or this can print fast with the normal resin?

Photon Mono M7 Pro can support both High Speed Resin and Standard Resins. The print speed is different. Max Speed 130mm/hr, 0.1mm Layer With Standand Resin; Max Speed170mm/hr, 0.1mm Layer With High Speed Resin.

What hardware is required when using a printer to clean and cure printed parts?

To clean and cure printed parts using a printer, you will need Cleaning Kit and Wash & Cure Machine.

How about finding out what resins this machine can support and where to find the resin settings for this 3D printer?

For information on resin settings, please visit: Resin Settings for Anycubic 3D Printers.
